Horologery Escapements

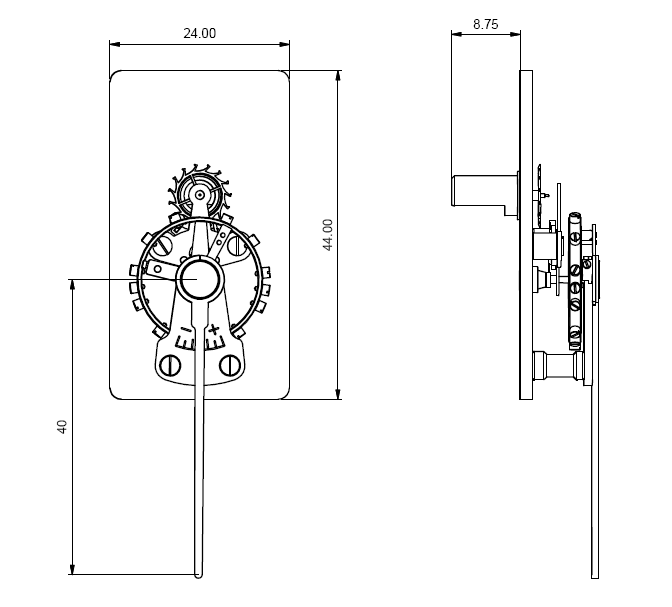

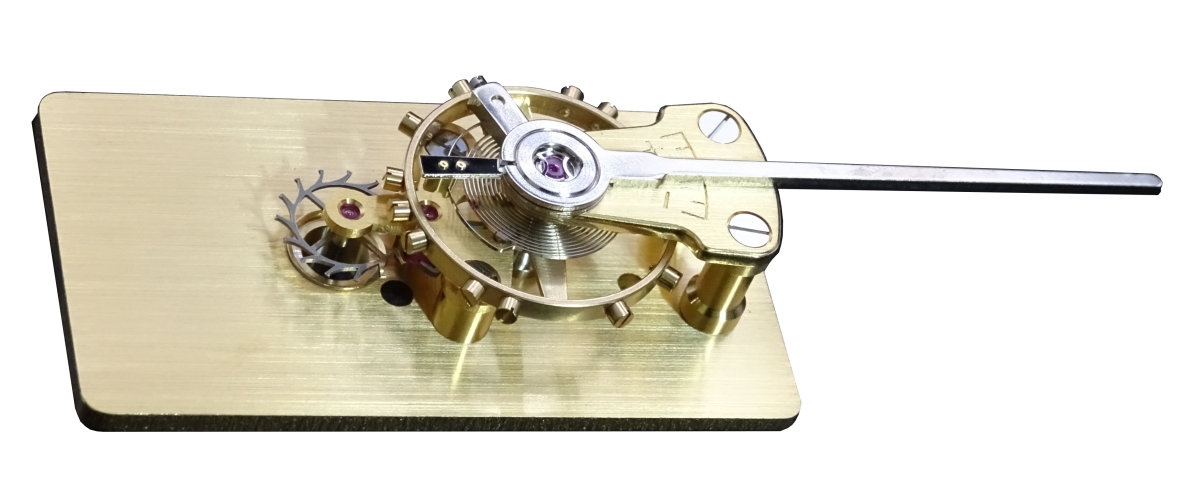

1.745 Platform Escapements for clocks 21"
Swiss Pallet Anchor Escapement
Main Specifications
- Alt. Frequency : 18'000 Alt/h
- Pallet wheel rotation : Right
- Platform size : 44 x 24 mm
- Pinion : z = 8 , M = 0.25
- Pinion depth : 7 mm max below base plate
- Finish : Satin Finish, gold plated
REssources

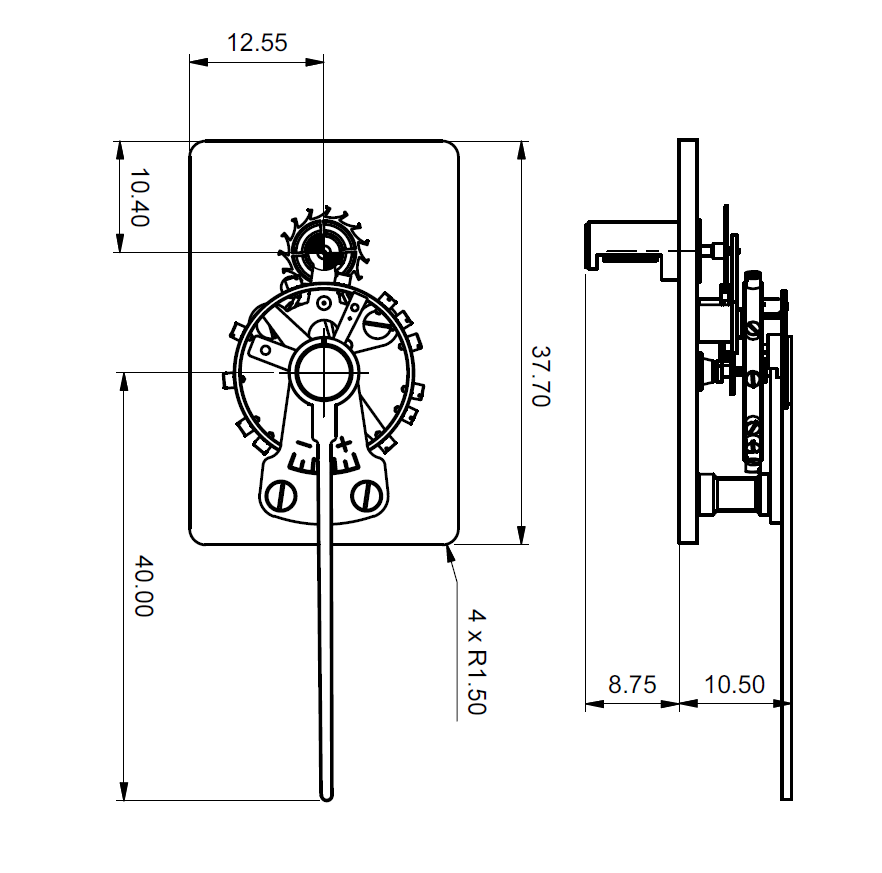

1.747 Platform Escapements for clocks 21"
Swiss Pallet Anchor Escapement
Main Specifications
- Alt. Frequency : 18'000 Alt/h
- Pallet wheel rotation : Right
- Platform size : 37.7 x 25.1 mm
- Pinion : z = 8 , M = 0.25
- Pinion depth : 7 mm max below base plate
- Finish : Satin Finish, gold plated
REssources

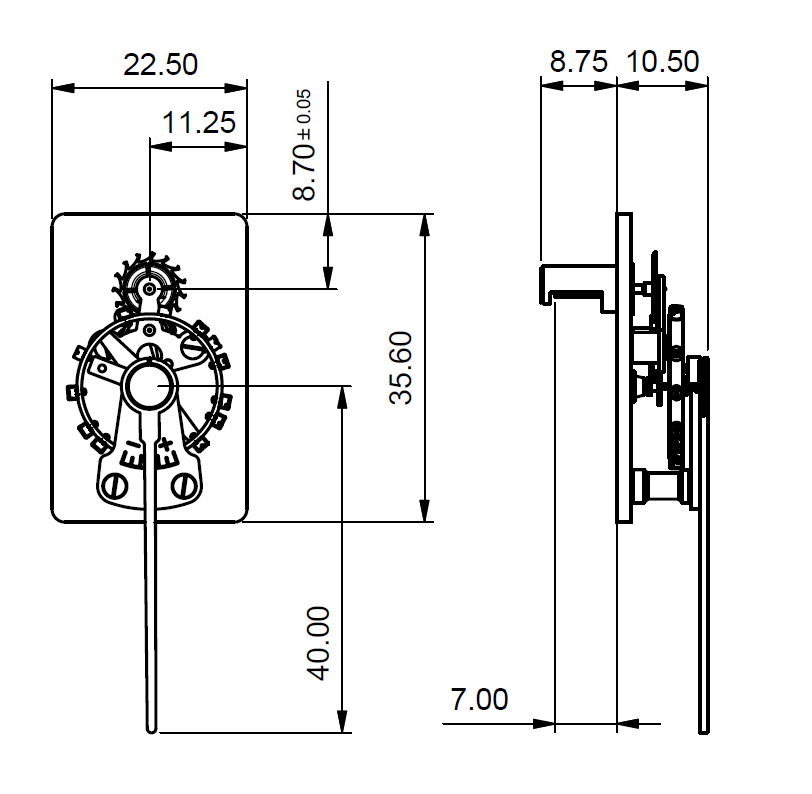

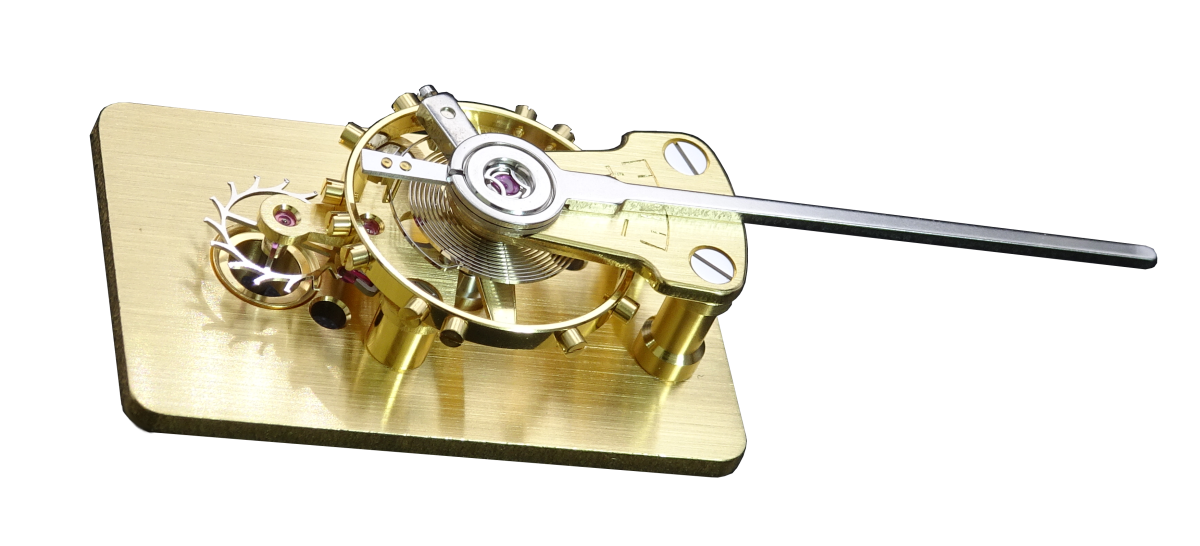

1.750 Platform Escapements for clocks 21"
Swiss Pallet Anchor Escapement
Main Specifications
- Alt. Frequency : 18'000 Alt/h
- Pallet wheel rotation : Right
- Platform size : 35.6 x 22.5 mm
- Pinion : z = 8 , M = 0.25
- Pinion depth : 7 mm max below base plate
- Finish : Satin Finish, gold plated
REssources

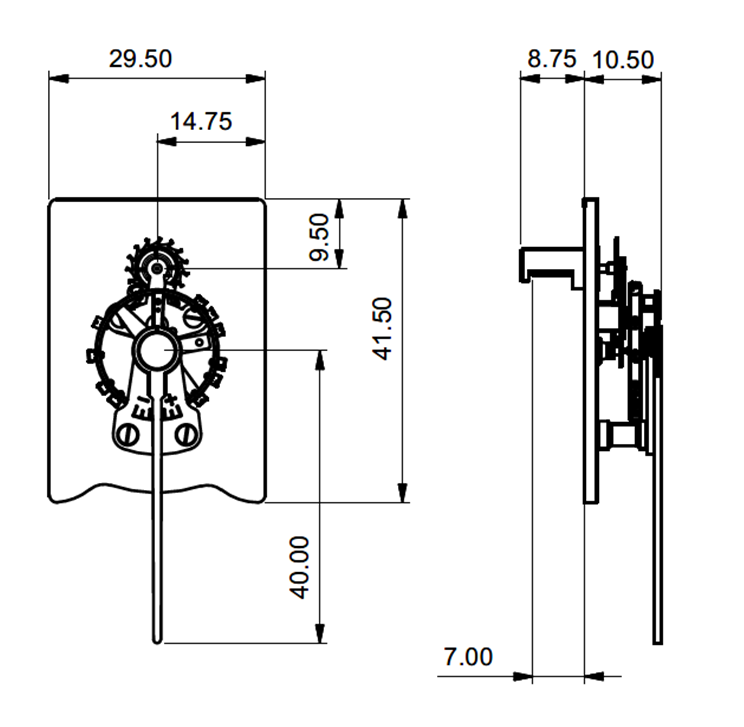

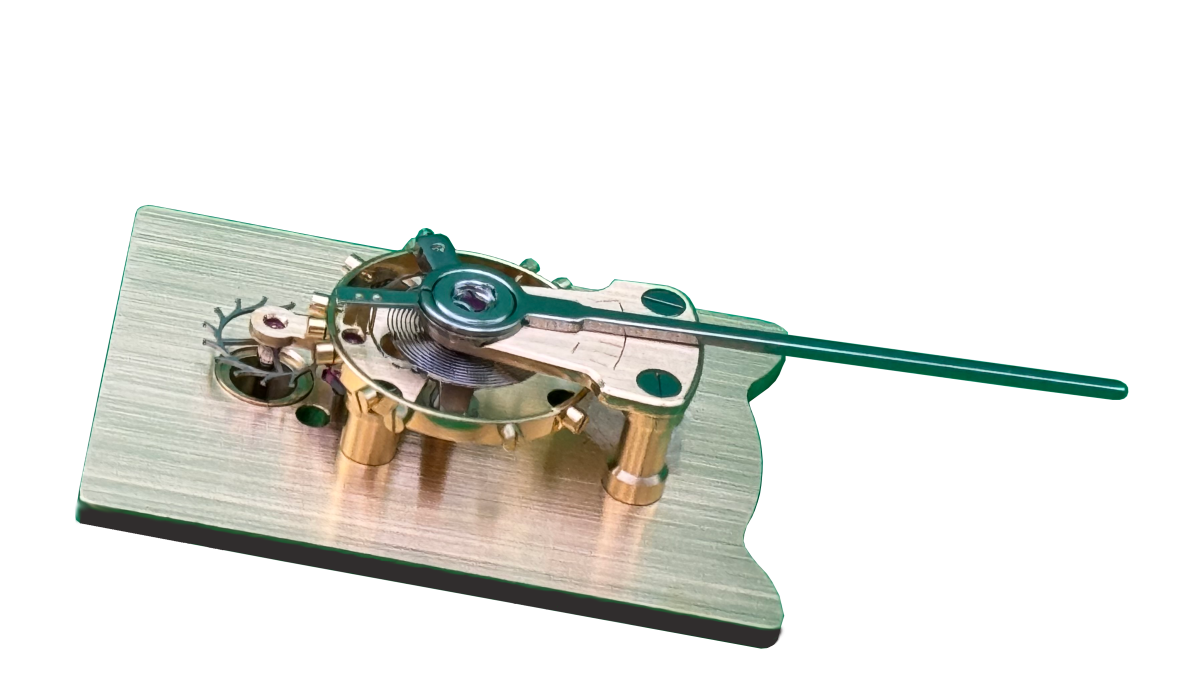

1.751 Platform Escapements for clocks 21"
Swiss Pallet Anchor Escapement
Main Specifications
- Alt. Frequency : 18'000 Alt/h
- Pallet wheel rotation : Right
- Platform size : 41.5 x 29.5 mm
- Pinion : z = 8 , M = 0.25
- Pinion depth : 7 mm max below base plate
- Finish : Satin Finish, gold plated
REssources

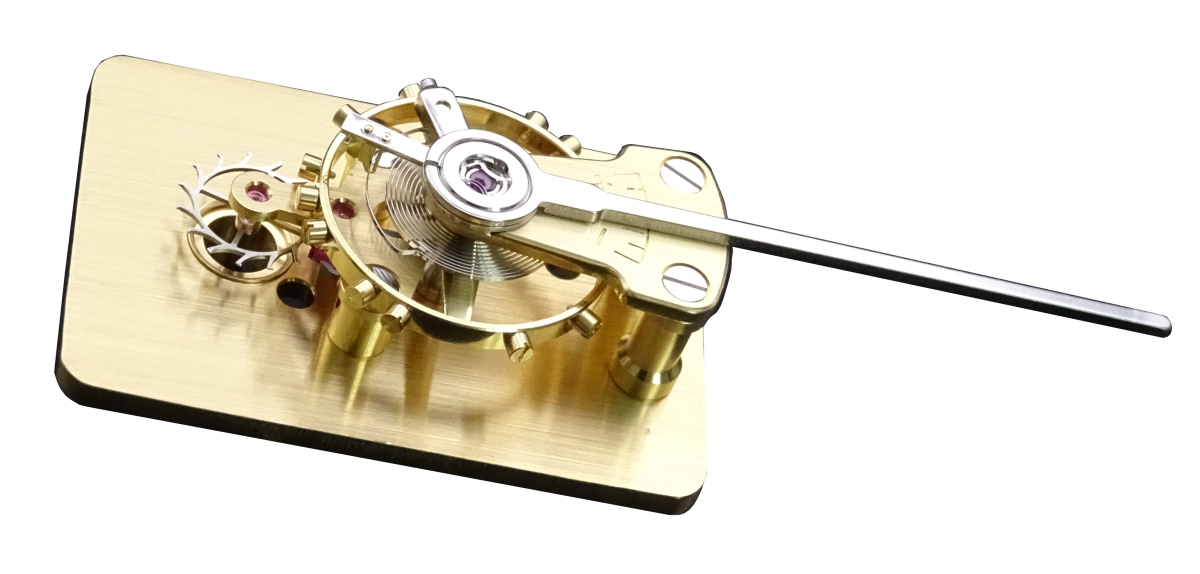

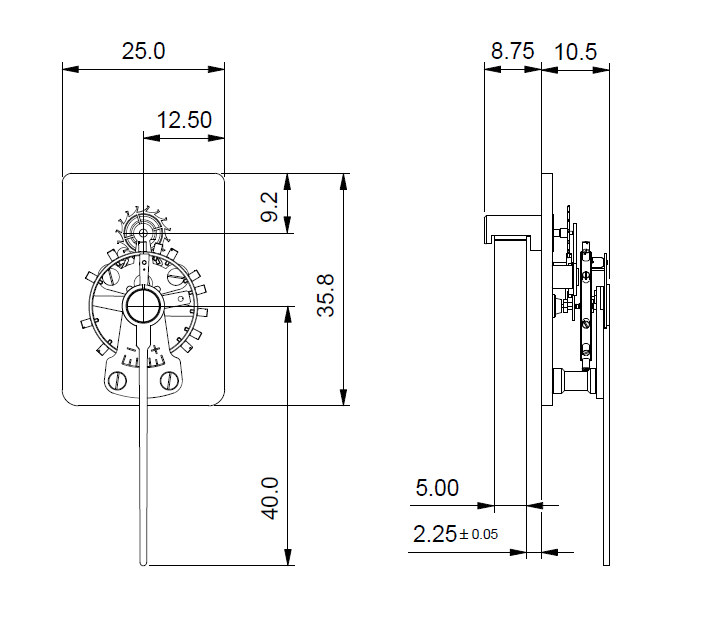

1.752 Platform Escapements for clocks 21"
Swiss Pallet Anchor Escapement
Main Specifications
- Alt. Frequency : 18'000 Alt/h
- Pallet wheel rotation : Right
- Platform size : 35.8 x 25 mm
- Pinion : z = 8 , M = 0.25
- Pinion depth : 7 mm max below base plate
- Finish : Satin Finish, gold plated
REssources
